StructureDropDown 3.x Properties.

Compatible to NOF 2.x, 3.x and NAS 3.x and 2000

Version 3.52

Released: 05.07.00.

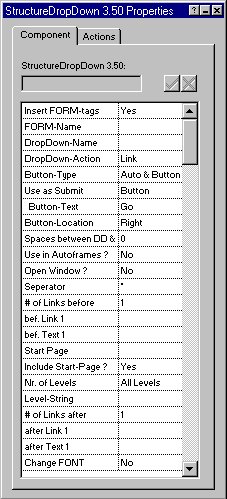

StructureDropDown 3.50




  • Insert FORM-tags :

Here you choose if FORM tags will be added before and after the DropDown. Choose “No” to use the component inside of a form area.

  • FORM-Name :

Here you can enter a name for the generated form. If left empty a default name is used.

  • DropDown-Name :

Here you enter a name for the generated DropDown-Element. If left empty a default name is used.

  • DropDown-Action :

Which action do you want to produce with the component - None, link to another site or submit the actual form.

  • Button-Type :

When choosing “Automatic”, the browser will go to the new page immediately after a list item is choosen. With “Button”, the user must press the button to go to the selected page. With “Auto & Button” a  combination of both types is used.

  • Use as Submit :

You can use a button or an image as submit-button. Here you choose what you want to use.

  • Button-Text :

Here you enter the text that will be displayed on the button. The button only appears when the Button-Type is set to “Button” or “Auto & Button” and an image is used for submitting..

  • Submit-Image :

Choose the image to use as submit-button here.

  • Image-Align :

In the property you choose which alignment you wish for the submit-image relative to the text and the dropdown.

  • Open Window ?

This property gives you the possibility to choose if a new window will be opened with the link or not.
NOTE : not all browsers make a difference there ! (see readme)

  • Button Location :

Do you want to place the submit-button left or right of the DropDown.

  • Spaces between DD &Btn :

How many spaces you want to insert between the Button and the DropDown ?

  • Use in Autoframes ?

With this property you choose if you want to link to Autoframe-pages. In this case and according to the entered link target some NOF-Autoframe- specific things will be generated.

  • Link Target :

Here you enter the name for the frame or window where the resulting page will be displayed.

  • Link to Frameset :

When the page where you want to link to have an own frameset you have to set this property to yes.

  • Select Entry :

Set if the actual page should be selected by default or none page is selected.

  • Seperator :

Here you enter the seperator-text. This text will be displayed for list-entries without a link.

  • Number of Links before/after:

How many link have to be shown before/after the automatically generated list of links?

  • Link before/after x :

Here you enter the link for the list entries. Leave this empty to have a seperator without a link.

  • Text before/after x :

Here you enter the text for the link. This text will be displayed in the drop-down-list.

  • Start Structure :

Choose the startpoint for the structure : 'Set manually'.'First Level', 'Parent Level', 'Child Level' and 'Current Level'.

  • Start Page:

Here you choose the startpage for the structure to show. When this property is left empty the actual page is used.

  • Include Start-Page?:

Should the startpage be included in the list or only the subpages?

  • Nr. of Levels:

How many levels should be shown in the list?

  • Level-String:

When showing several levels you can enter a text to prepend for the sublevels-texts.

  • Change FONT:

How you would like to change the FONT size for the DropDown component ? Absolute (1-7) or Relative to the actual size (+/-) ?

  • Abs./Rel. Value :
    (required for FONT change)

Here you enter the value with which you want to modify the FONT size.
